Product name		UH300	UH350	UH400	UH425	UH450	UH500	UH550	UH600	UH650	UH700	UH750
Tcs	kNm	190	300	445	536	634	847	1180	1500	1890	2353	2940
Tdw	kNm	65	110	170	209	250	347	470	620	786	980	1240
β (angle)	°	10	10	8	8	8	8	6	6	6	6	6
D	mm	300	350	400	425	450	500	550	600	650	700	750
M	mm	60	70	80	86	92	107	116	125	136	146	155
S (tube)	mm	244.5×28	273×30	323.9×36	355.6×40	406.4×40	457×50	Customize	Customize	Customize	Customize	Customize
W (spline)	–	185-m5	210-m5	210-m5	210-m5	240-m5	290-m8	Customize	Customize	Customize	Customize	Customize
Lz (min.)	mm	965	1080	1220	1284	1348	1503	1604	1730	1849	1949	2090
La (stroke)	mm	135	155	175	185	195	205	220	235	250	265	290
G	kg	477	767	1125	1351	1627	2227	Customize	Customize	Customize	Customize	Customize
Gr	kg	149	180	255.6	311.3	361.4	501.94	Customize	Customize	Customize	Customize	Customize
d (max.)	mm	185	215	250	265	280	310	340	375	400	435	465

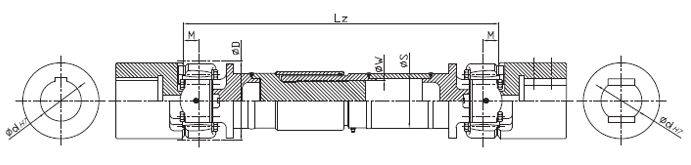

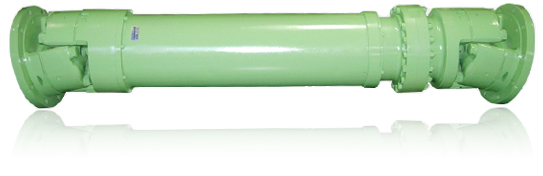

UH-TYPE
